Historical Zippo references associated with 1969: 8 consolidated case/bottom stamp entries, 2 consolidated insert entries, and 13 individual photographic source records. Date codes, materials and insert construction should be assessed together, especially for transitional years.
8 consolidated case references2 consolidated insert references13 documented photo records
Historical context and cautions
Historical dating note
Terry Lyons photographic reference: a Bradford regular-size case shows the 1969 vertical bars pattern (3 left, 2 right), with associated insert front/back and chimney-top photographs. The insert may have been replaced; determine case and insert dates separately.
Typical US regular-production chronology from independent collector research by Hardi Döhler. The ranges overlap, and Canada, Slim, Replica, Sterling, Japan-market and special editions may differ. These are supporting observations, not a definitive date determination.

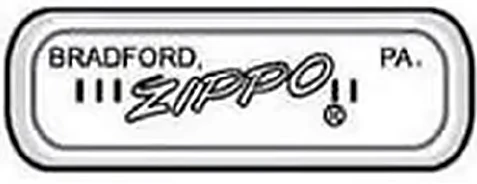

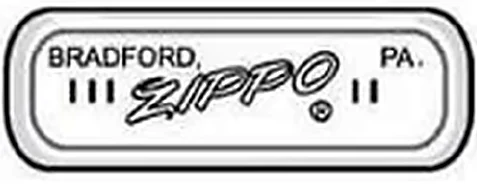

1969 later logo/layout variation — A later 1969 layout shows a tail on the Z, with related trademark/BRADFORD positioning changes. Known period: 1969. Dating evidence: Secondary dating clue (Construction or material information that may narrow a period. Repairs, replacement parts and production overlaps can change the interpretation.). Sources: Glen's Zippo Page.
Insert construction evidence
16-hole chimney — Introduced during 1946; not useful as a precise clue on later inserts. Known period: 1946–9999. Dating evidence: Secondary dating clue (Construction or material information that may narrow a period. Repairs, replacement parts and production overlaps can change the interpretation.). Sources: Glen's Zippo Page.16-hole chimney · Historical reference illustration · Source: Glen's Zippo Page
Narrow cam spring — Used to around 1970; narrow springs have been found in 1971 lighters. Known period: 1957–1971. Dating evidence: Supporting comparison (A useful illustrated or photographed comparison. The feature alone does not establish a unique production date.). Sources: Glen's Zippo Page.Narrow cam spring · Historical reference illustration · Source: Glen's Zippo Page
Solid flint-wheel rivet — Introduced around 1961; overlaps hollow rivets for several years. Known period: 1961–9999. Dating evidence: Supporting comparison (A useful illustrated or photographed comparison. The feature alone does not establish a unique production date.). Sources: Glen's Zippo Page.Solid flint-wheel rivet · Historical reference illustration · Source: Glen's Zippo Page
Interpretation: References may cover multiple years. A documented insert date is not proof of its case production date, and special Replica stamps require separate interpretation.
